Medical Grade 4-Layer HDI Precision PCB

Medical Grade 4-Layer HDI Precision PCB, 0.8mm Thickness, 3mil Fine Line, 0.1mm Microvia, Tab Routing Panel for Hearing Aids | Juehui Weiye Circuit, Professional Manufacturer of Medical Grade HDI Precision PCB

Material: FR-4
Layers: 4-Layer
Thickness: 0.8mm
Min. Aperture: 0.1mm
Min. Line Width: 0.075mm
Min. Line Dia.: 0.075mm
Line Width/Spacing: 3/3mil
Surface Finish: ENIG
Features: High Precision BGA Resin Plug Hole
Application: Hearing Aid

Product Detail

4-Layer 1st-Order HDI Buried & Blind Via PCB | Mini Round Medical Circuit Board for Hearing Aids

Product Overview

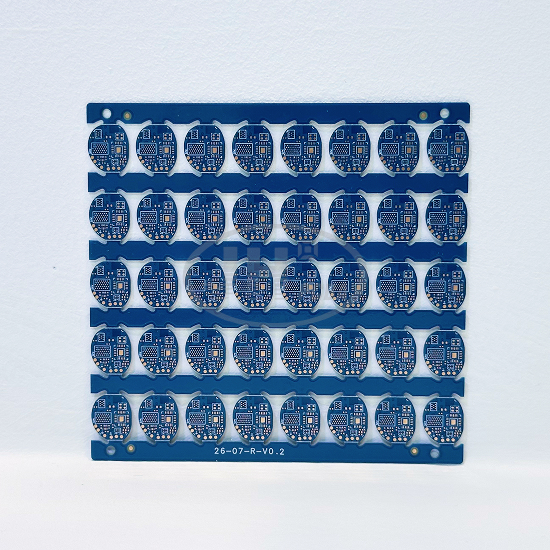

This 4-layer 1st-order HDI buried and blind via high-precision PCB is mass-produced by Juehui Weiye, specially designed for mini wearable medical hearing aid devices. It adopts medical high-TG FR-4 substrate with finished thickness of 0.8mm, classic 1+2+1 1st-order HDI stack-up. Min laser blind via 0.1mm, min trace & space 3mil/3mil.It adopts BGA precise fan-out routing and vacuum resin plugging, with medical-grade ENIG surface finish. Designed with stamp hole panel array, each unit is mini round single board, improving customer SMT efficiency and easy depaneling.With the features of miniaturization, high-density routing, low signal crosstalk, moisture and oxidation resistance, it meets strict medical requirements of long-term stable operation for close-fitting hearing aids. It serves as the main control board for in-ear and invisible hearing aids.

Core Specifications

Product Advantages

1. 1st-order HDI buried blind via for extreme miniaturization

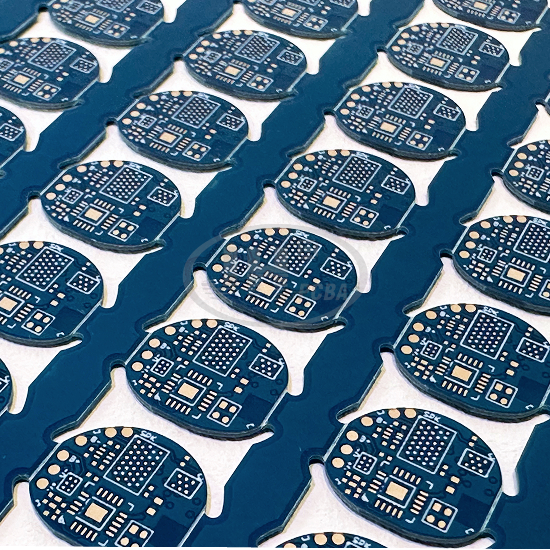

1+2+1 stack-up with 0.1mm laser blind vias and 3mil ultra-fine traces, realizing high-density routing on tiny round board, shrinking PCB size to fit limited inner space of hearing aids.

2. BGA & resin plugging for superior reliability

Precise BGA fan-out design. Vacuum resin plugging and board grinding produce flat surface without voids or dents, preventing dust accumulation, oxidation and short circuit. Stable audio signal transmission and extended service life.

3. Stamp hole panel for mass production

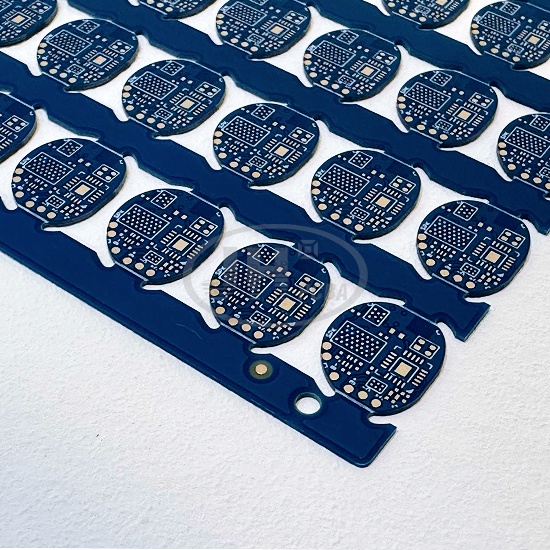

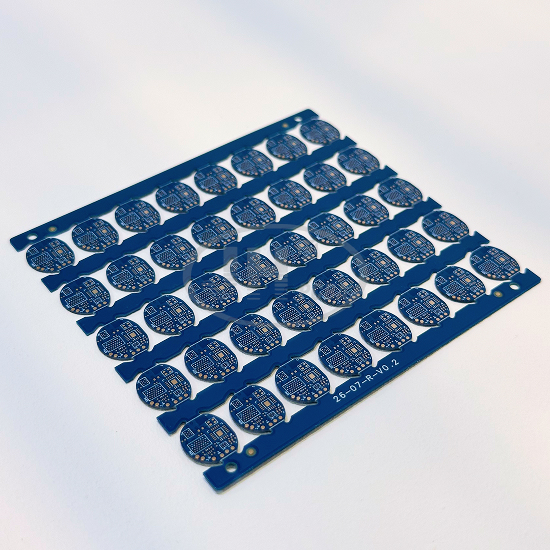

Multi-up panel with round single units connected by stamp holes. High efficiency for SMT assembly, clean depaneling without edge chipping, ideal for mass production of hearing aid PCBs and reducing assembly cost.

4. Medical-grade ENIG surface finish

Flat and uniform pads, anti-oxidation and anti-corrosion. Reliable BGA soldering, stable performance in closed humid wearable environment and good rework capability.

5. Safe & Eco-friendly

UL94-V0 flame retardant, halogen-free substrate. Full medical and environmental certifications, no harmful substance leaching for human close contact.

Certifications

All high-precision PCBs from Juehui Weiye comply with international standards with complete authoritative certifications, traceable and reliable medical-grade quality:

✅ ISO9001 Quality Management System Certification: Standardized closed-loop production control to guarantee consistency and precision.

✅ ISO13485 Medical Device Quality Management System Certification: Meet quality requirements for medical device supporting manufacturing.

✅ UL Safety Certification: Qualified flame retardancy and insulation, conforming to international safety regulations.

✅ ROHS Environmental Certification: Lead-free and halogen-free, free of toxic hazardous substances.

✅ REACH Environmental Certification: Comply with EU chemical regulation, support global export.

Applications

Digital hearing aids, invisible in-ear hearing aids, mini hearing correction equipment, wearable acoustic medical modules, mini medical sensor main control boards.

Manufacturing Capability of Juehui Weiye

Juehui Weiye Circuit specializes in R&D and mass production of HDI high-precision PCB and medical wearable PCB. We have dust-free anti-static workshop, full set of imported equipment including LDI laser direct imaging, laser drilling, vacuum resin plugging and automatic inspection.We are proficient in HDI buried blind via, irregular round PCB, stamp hole panel, 3mil fine trace, 0.1mm microvia and other high-difficulty processes. The whole production follows ISO13485 medical system. Strict quality control from DFM review, fabrication to final inspection.We support fast prototype, small batch and mass stable delivery, providing one-stop custom PCB solution for medical precision electronics enterprises.
