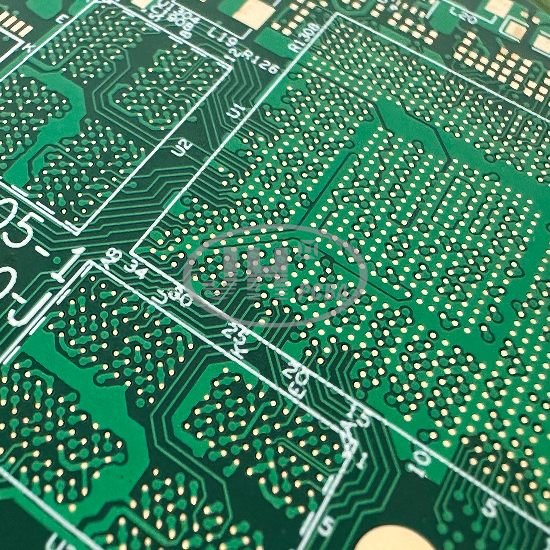

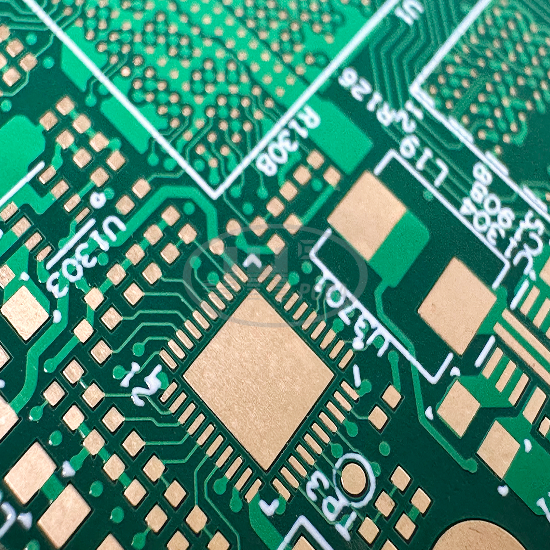

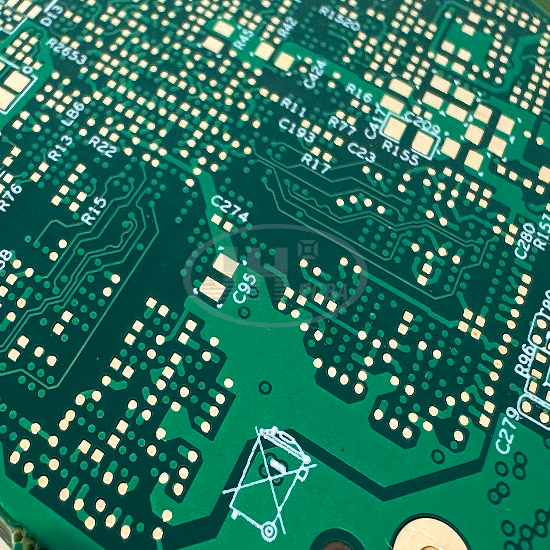

10‑Layer Military‑Grade Precision Circuit Board, Immersion Gold, Controlled Impedance

10‑Layer Precision Stack‑up Architecture
Complete multi‑layer shielding ground planes deliver superior EMI/EMC anti‑interference performance and excellent signal integrity for high‑frequency and high‑speed signals, supporting complex RF and high‑speed bus routing.

High‑Precision Controlled Impedance
Closed‑loop full‑process control over dielectric thickness, trace width and copper weight achieves tight impedance tolerance. It ensures consistent transmission for high‑frequency circuits and meets design requirements for military‑grade RF and differential signals.

Military‑Grade Reliable Manufacturing Process
Step‑by‑step lamination relieves internal stress to resist warpage and delamination. It withstands temperature cycling, salt spray and damp‑heat aging, suitable for harsh operating conditions including field deployment, airborne and cabin environments.

Corrosion‑Resistant Thick Immersion Gold Plating
Dense and uniform gold finish provides oxidation resistance, salt‑spray tolerance and stability under repeated plugging and soldering. It guarantees long‑term soldering reliability for fine BGA pads.

Custom Special‑Shaped Cut‑out Capability
Supports annular and irregular cutouts and routing profiles to satisfy requirements for mechanical assembly, heat dissipation and electromagnetic shielding clearance.

Rigorous Full‑Inspection System
Batch sampling inspection for electrical performance, impedance, visual appearance and reliability, complying with military incoming‑product acceptance standards.

Low‑Loss Dielectric Material Selection
Optimized for high‑frequency gigabit and high‑speed differential signals with low signal attenuation and stable transmission performance.
