6-Layer Medical Grade PCB for EU & US Medical Devices

Custom fabricated 6-layer precision PCB with resin plug vias, purple solder mask and electroless nickel immersion gold (ENIG), for life science laboratory automation equipment

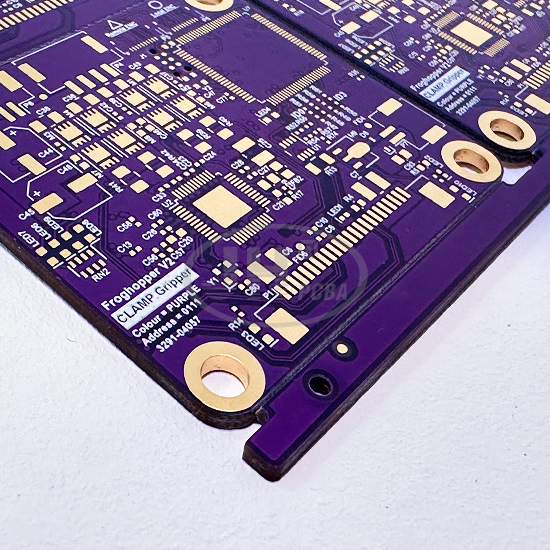

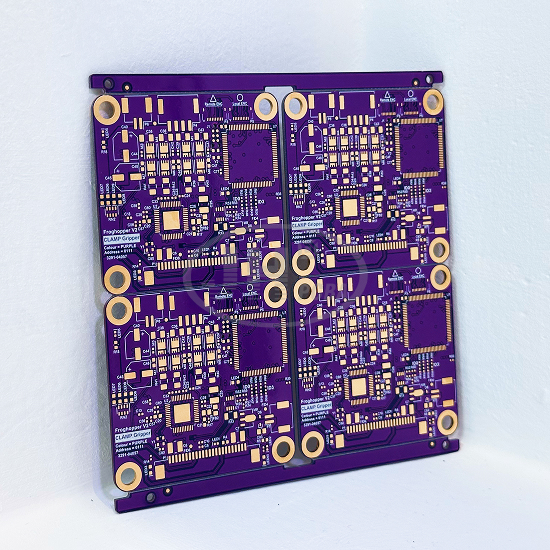

This 6-layer PCB with purple solder mask, board thickness 1.6mm, panel size 111×111mm. It adopts high TG FR4 epoxy glass CCL with resin plug via + ENIG surface finish. It is the main control board of CLAMP Gripper biological sample gripper for SPT Labtech laboratory automation equipment from UK. Designed as 4-up panel with V-CUT and stamp holes for automatic SMT assembly. Developed for life science and biological research precision instruments to ensure stable acquisition of weak signals. Juehui Weiye customizes resin plug multilayer PCB according to customer Gerber files, supporting special color solder mask & controlled impedance. We provide one-stop service from rapid prototyping to small & medium batch production.

Key Specifications

- Material: FR-4 High TG170, Epoxy Glass CCL, Flame retardant UL94 V-0

- Layers: 6 Layers with resin plug via technology

- Board Thickness: 1.6mm

- Solder Mask: Purple solder mask, White silkscreen

- Surface Finish: ENIG (Electroless Nickel Immersion Gold)

- Min Line Width/Spacing: 0.1mm / 0.1mm

- Min Hole Size: 0.2mm (Mechanical drill)

- Panel: 4-up panel, V-Cut + Stamp holes

- Copper Weight: 1oz outer layer (2oz optional)

- Key Process: Resin plug via, filled and ground flat, no depression on BGA area

- Certification: RoHS, UL, impedance test report available

- Application: Life science lab automation equipment, biological sample gripper module, precision scientific instruments, embedded control board for biomedical research

Product Advantages

✅ Mature 6-layer & resin plug via process. Vias filled and flattened to eliminate BGA solder ball & cold solder risk, meets strict requirements of high-end precision instruments

✅ High TG170 substrate, low water absorption, excellent moisture resistance. Stable board shape under constant temperature & humidity lab environment

✅ Custom purple solder mask, high recognition. Red, blue, matte black and other special ink colors available on request

✅ ENIG finish provides flat & anti-oxidation pads, high assembly yield for high-density QFN/BGA IC, ideal for premium overseas instruments

✅ Optimized 4-up panel design improves SMT efficiency and reduces customer assembly cost

✅ Full quality control: DFM review, AOI inspection and 100% electrical test. IPC Class 2 / Class3 standard optional

✅ Export support: English datasheet and full test reports available, perfect for European & American life science equipment export projects

Our Service

Juehui Weiye Circuit focuses on high-precision PCB manufacturing. We specialize in resin plug multilayer PCB, HDI PCB, controlled impedance PCB and special color solder mask PCB. We accept Gerber files and provide stack-up design, impedance calculation and panel optimization. Fast prototype and small-medium batch production available. Serving high-end industries including life science, biomedical research and industrial automation. Vacuum moisture-proof packaging and complete export documents for overseas orders.
