Panasonic MEGTRON6 (M6) Hybrid Laminated High-Speed PCB

6-Layer Panasonic MEGTRON6 Mixed Laminate Industrial RF PCB

Product Overview

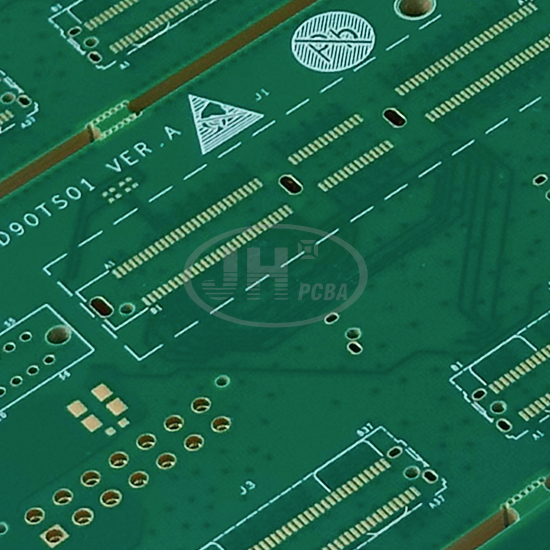

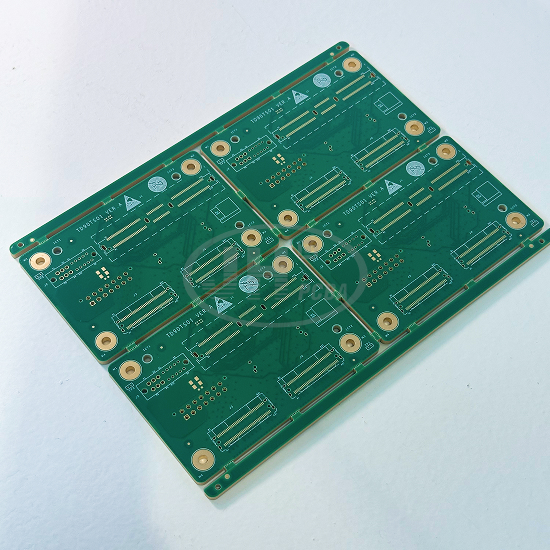

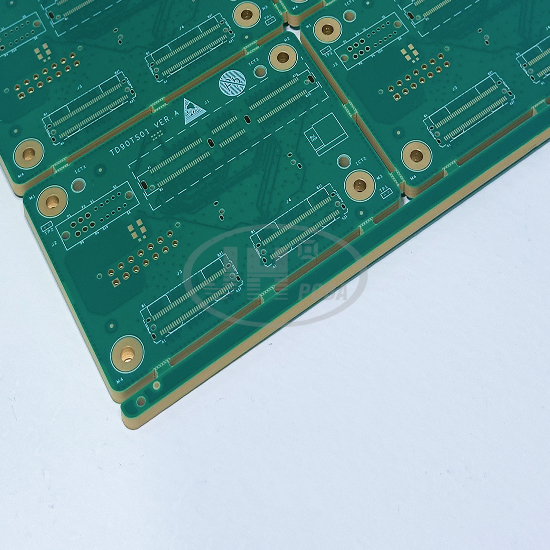

This 6-layer Panasonic MEGTRON6 (M6) mixed laminate RF PCB is mass-produced by Juehui Weiye Circuit. Finished dimension:180×135mm, board thickness:2.4mm. It adopts Panasonic M6 ultra-low loss high-speed substrate with ENIG surface finish. Min trace width/space:4mil/4mil, min hole size:0.3mm. Designed for industrial radio frequency and industrial wireless signal transmission equipment. It features ultra-low signal transmission loss and excellent thermal resistance, maintaining stable signal integrity under high-frequency working conditions. It is the core circuit board for industrial RF devices.

Specifications

Material ： Panasonic MEGTRON6(M6), Mixed Laminate

Layers ： 6 Layers

Finished Size ： 180×135mm

Board Thickness ： 2.4mm

Min Hole Diameter ： 0.3mm plated through hole

Min Trace Width / Space ： 4mil /4mil

Surface Finish ： ENIG (Electroless Nickel Immersion Gold)

Solder Mask ： Green Solder Mask, White Legend

Flammability ： UL94 V-0

Substrate Performance

Panasonic MEGTRON6 is mainstream ultra-low loss high-speed RF material, built on modified epoxy resin & glass cloth. Df=0.003@12GHz with stable Dk value, low thermal expansion coefficient, Tg 185℃. It resists deformation after multiple reflow cycles, suitable for thick multilayer boards and extra-large-size PCB. It supports precise impedance control for RF traces to avoid high-frequency signal attenuation.

Process Features

1. Multi-layer lamination technology for large panel: Optimized lamination parameters for 1080mm long board, effectively reduce board warpage & layer misregistration.

2. LDI direct imaging for 4mil fine traces, uniform etching and tight trace tolerance for consistent RF impedance.

3. Precision CNC drilling + plasma desmear, minimize rough hole wall for thick board, complete copper barrel and reliable interlayer connection.

4. ENIG finish with uniform gold layer, flat pads, good oxidation resistance for long-term RF connector contact.

5. Full inspection: AOI, X-Ray, Flying Probe Electrical Test. Impedance test & micro-section reliability report available upon request.

Application

Industrial RF equipment, Industrial wireless communication mainboard, Industrial microwave inspection, RF signal acquisition board, Automation wireless transmission module, Industrial radar signal board.

Advantages of Juehui Weiye Circuit

Juehui Weiye Circuit specializes in custom high-frequency & high-speed PCB, including Panasonic M6, Rogers, Isola material prototyping & mass production.

✅ Mature process for mixed laminate multilayer PCB, large & thick PCB

✅ One-stop solution for fine trace, microvia and impedance control

✅ Fast prototype delivery, stable mass production for small & medium batches

✅ Reliability test report available (Impedance test, micro-section, thermal shock)

✅ Professional engineering support, stack-up review & DFM check to reduce design risk
