6-Layer Rogers RO4350B Hybrid PCB

6-Layer Rogers RO4350B Hybrid PCB | High Frequency RF Circuit Board

Product Overview

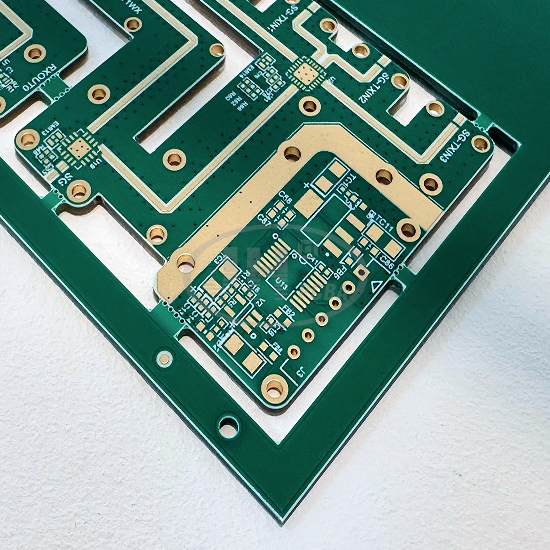

This is a 6-layer hybrid PCB with Rogers RO4350B + FR-4. Finished dimension: 267.5*110mm, board thickness 1.2mm, surface finish ENIG. Minimum trace width/space: 8mil/8mil, minimum hole size:0.3mm.

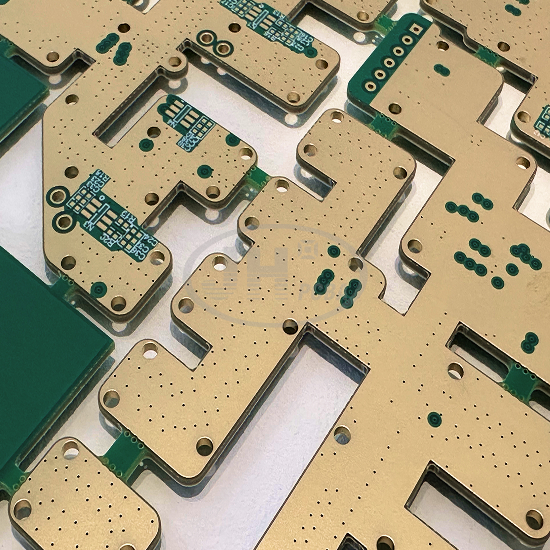

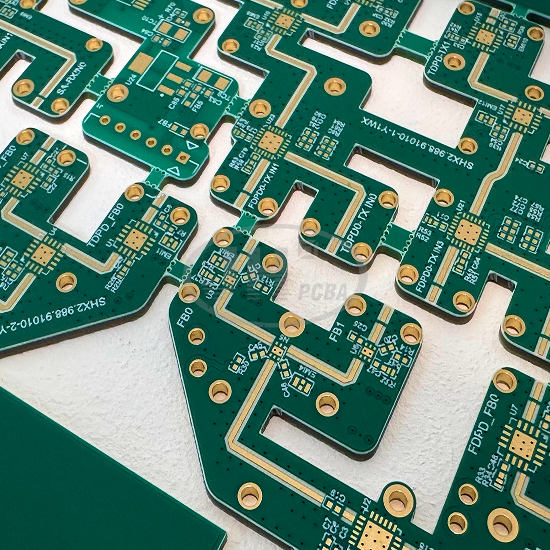

Hybrid stack-up with Rogers RO4350B ceramic filled PTFE high-frequency material and FR4. It achieves excellent RF performance while optimizing cost. Low signal attenuation and stable dielectric constant make it ideal for microwave, radar and wireless communication applications. Juehui Circuit has mature manufacturing capability for hybrid high-frequency PCB, supporting prototype and small-batch production.

Specifications

【Material】 Rogers RO4350B + FR-4 Hybrid

【Layers】6 Layers

【Finished Thickness】1.2mm

【Dimension】  267.5*110mm

【Min Hole Size】 0.3mm

【Min Trace Width / Space】 8mil / 8mil

【Surface Finish】  ENIG (Electroless Nickel Immersion Gold)

【Flammability】 UL94 V-0

【Impedance】  Controlled impedance available upon request

Key Advantages

1. Stable High-frequency Performance: Rogers RO4350B features low dissipation factor, low signal loss and stable Dk, perfect for microwave and millimeter-wave RF signal transmission.

2. Cost-effective Hybrid Stack-up: Combine high-frequency Rogers material with FR4, reduces cost vs full Rogers board while maintaining RF performance.

3. Fine Line Capability: Support 8mil fine traces and 0.3mm microvias for high density RF component layout.

4. ENIG Surface Finish: Flat surface, good oxidation resistance and solderability, reliable for RF chip soldering and multiple reflow cycles.

5. Panel with Breakaway Tabs: Multi-unit panel design, easy depanel after SMT, improve assembly efficiency.

Applications

Microwave & RF modules, radar systems, 5G / mmWave communication, power amplifiers, satellite communication, high frequency test instruments, medical RF equipment.

Manufacturing Capability of Juehui Circuit

Juehui WCircuit specializes in high-frequency PCB, multi-layer PCB and special material PCB. We process Rogers, Taconic, Isola and other high-frequency laminates.

✅ Mature Rogers & FR4 hybrid lamination process, well controlled on warpage and layer offset.

✅ Provide stack-up design, impedance calculation and DFM review before production.

✅ Full inspection: Flying probe test, AOI, microsection and impedance sampling test.

✅ Service: PCB prototyping & small volume mass production, one-stop PCB manufacturing for fast project validation.

Order Information

Please send Gerber files, stack-up requirement, impedance specification and surface finish requirement for quotation and manufa
