6-Layer Automotive PCB | Custom PCB for Intelligent Cabin Domain Controller

This 6-layer automotive PCB has finished dimension 207×167mm, board thickness 1.6mm. It adopts automotive-grade high Tg FR-4 substrate with ENIG surface finish, specially developed for passenger car intelligent cabin & body domain controller.

The PCB uses classic 6-layer stackup with separated power and ground planes, delivering excellent EMI shielding performance. It supports high-speed differential signals like CAN FD and automotive Ethernet to meet vehicle EMC requirements.

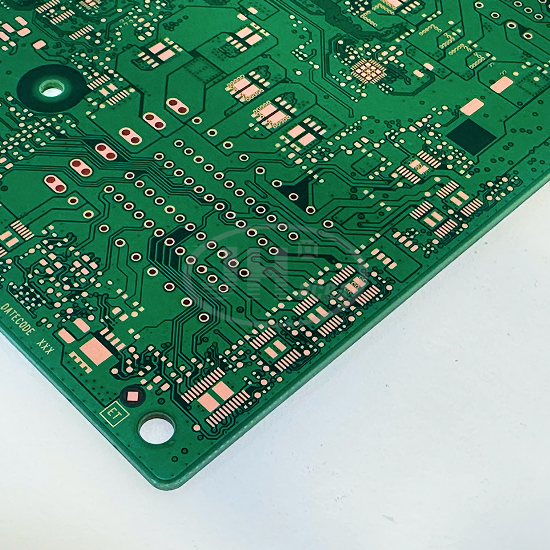

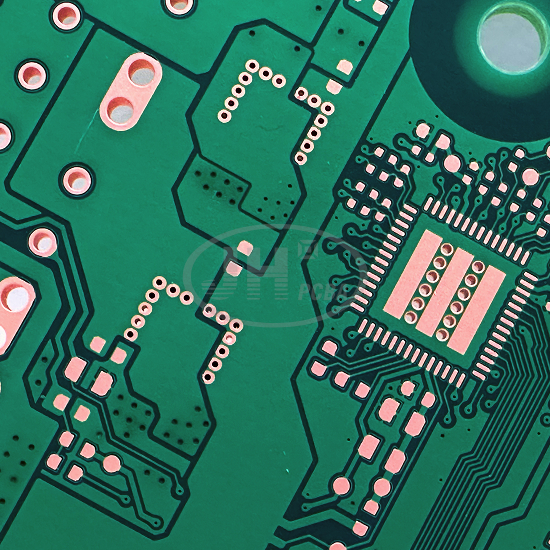

Designed with high-density BGA & QFN routing, fine trace and microvia technology. Contour is CNC routed with special cutout shape to fit vehicle housing assembly. The PCB can work under wide temperature range, anti-vibration and thermal shock, ensuring long-term stable performance for automotive application.

Specifications

- Layers: 6 Layers

- Finished Size: 207 × 167 mm

- Board Thickness: 1.6 mm

- Base Material: High Tg FR-4 fiberglass epoxy laminate (Tg≥170℃, halogen-free optional)

- Insulation Resin: Modified Bisphenol A Epoxy Resin

- Flame Resistance: UL94 V-0

- Surface Finish: ENIG (Electroless Nickel Immersion Gold)

- Min Line Width / Space: 0.1mm / 0.1mm

- Min Hole Size: Mechanical hole 0.25mm; Laser microvia 0.1mm

- Impedance: Custom single-ended / differential impedance, tolerance ±5%

- Operating Temperature: -40℃ ~ +125℃

Features

✅ Automotive high Tg material with low CTE, prevent barrel crack under temperature cycling

✅ 6-layer stackup with solid ground plane, good EMI suppression for vehicle EMC compliance

✅ High density routing for BGA/QFN IC, precision fine line fabrication

✅ ENIG finish, flat pads, good solderability and anti-oxidation for multiple reflow

✅ CNC custom contour & mounting holes, perfect match automotive mechanical structure

✅ Full reliability test: thermal shock, ionic contamination test for automotive supply chain

Application

Automotive electronics, intelligent cabin, vehicle domain controller, BCM body control module, automotive gateway, dashboard mainboard and other passenger car electronic control units.

JUEHUI WEIYE CIRCUIT Capability

Juehui WEIYE Circuit specializes in high-reliability multi-layer PCB manufacturing, offering PCB prototype and mass production for automotive, industrial and communication industry.

✅ Layer range: 2~16 layers, HDI board with blind & buried vias available

✅ Material options: High Tg FR4, halogen-free FR4, MCPCB, high frequency material

✅ Process: Controlled impedance PCB, heavy copper PCB, special shape PCB, ENIG/IMS/OSP surface treatment

✅ Quality control: 100% AOI + flying probe test, in-house reliability lab, full test reports available

✅ Service: DFM review, stack-up design, impedance calculation, fast prototype, small & mass volume one-stop service

Service

We accept Gerber or PDF files for quotation, DFM checking, prototype sampling and volume production. Support automotive reliability validation, welcome inquiries from automotive electronics companies.
