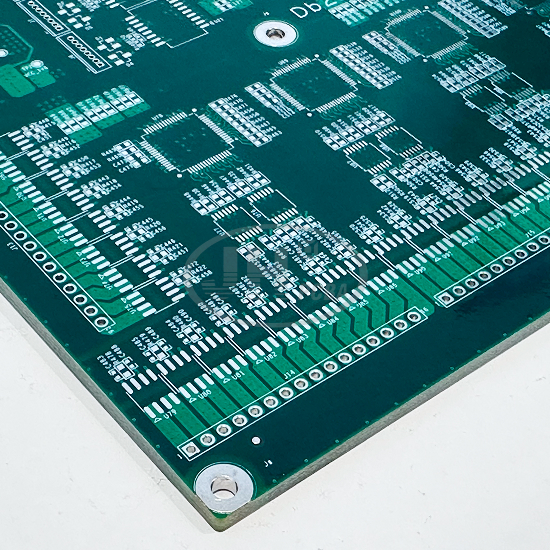

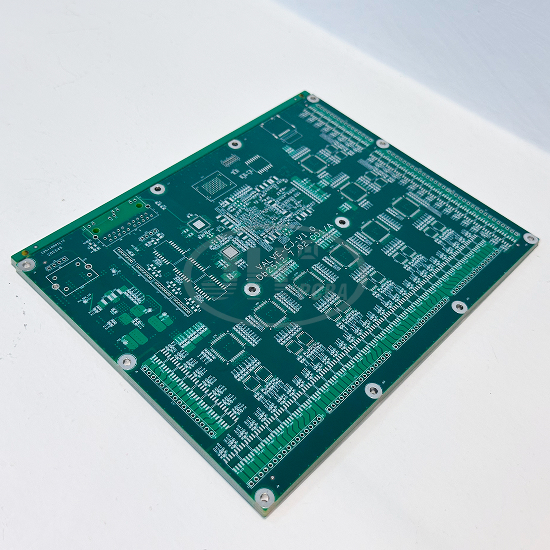

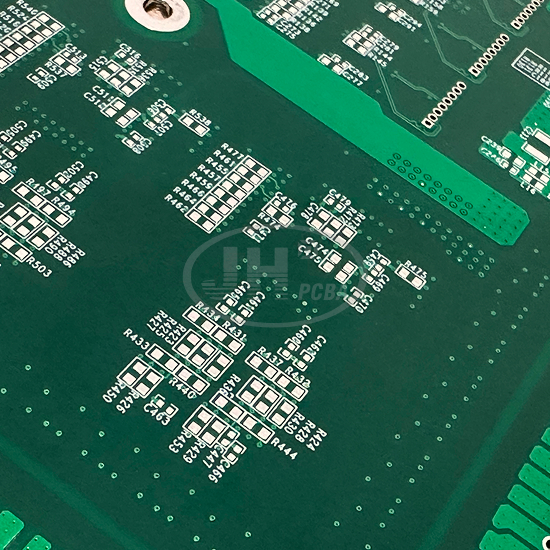

12-Layer Industrial Control PCB Prototype
12-Layer Thick High Multilayer PCB Fabrication, High Aspect Ratio 15:1 Deep Hole Technology, 3.0mm Thick HASL (Leaded) Precision Controlled Impedance Circuit Board
Material: FR-4- Layers: 12-Layer
- Thickness: 3.0mm
- Min. Aperture: 0.2mm
- Min. Line Width: 0.15mm
- Min. Line Dia.: 0.09mm
- Line Width/Spacing: 6/3mil
- Surface Finish: HASL
- Features: High Multilayer, High Aspect Ratio 15:1
- Application: Multi-channel Solenoid Valve Board
