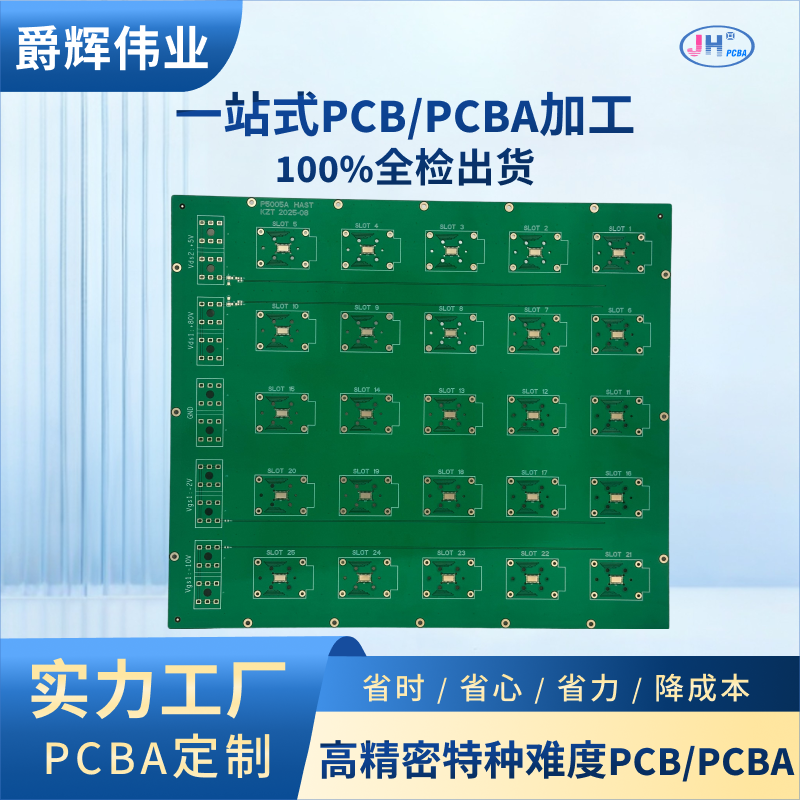

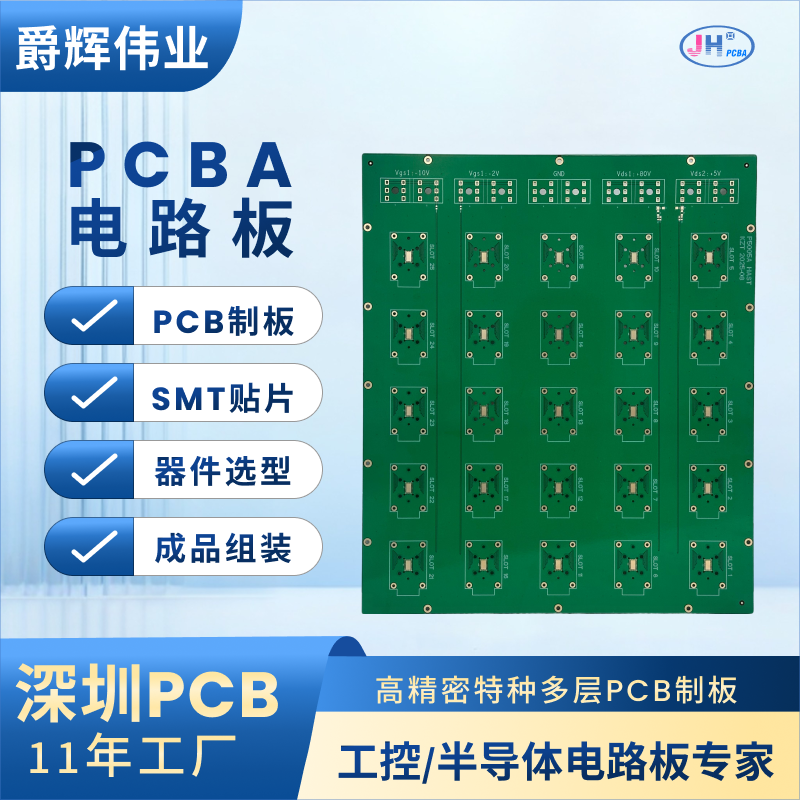

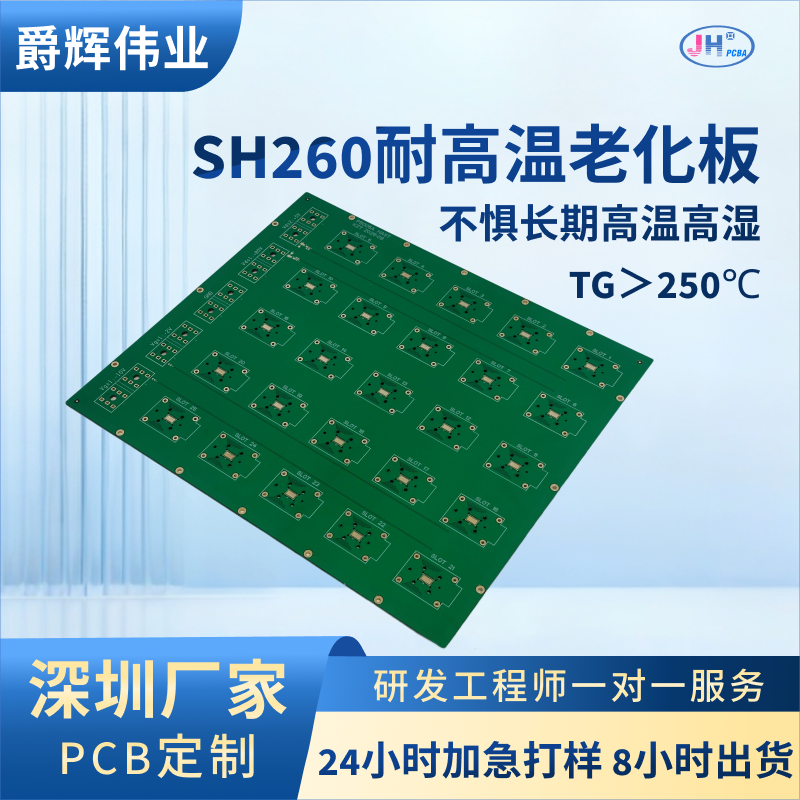

PCB fabricated with SH260 high-temperature substrate
Custom Fabrication of High-Temperature PCB with SH260 Raw Material, Tg > 250°C, Ultra-High Thermal Resistance
Material: SH260- Layers: 2-Layer
- Thickness: 2.0mm
- Min. Aperture: 0.2mm
- Min. Line Width: 0.15mm
- Min. Line Dia.: 0.15mm
- Line Width/Spacing: 6/6mil
- Surface Finish: ENIG
- Features: Tg＞250°C, Ultra High Heat Resistance
- Application: Semiconductor
