2-Layer Pure Rogers 4350B PCB

Juehui Weiye Circuits | Custom Rogers 4350B PCB, 2-Layer Precision Microvia Medical High-Frequency Circuit Board, Prototype & Mass Production, ISO13485 Medical Quality Management System Certified

Material: Rogers4350B
Layers: 2-Layer
Thickness: 0.8mm
Min. Aperture: 0.2mm
Min. Line Width: 0.15mm
Min. Line Dia.: 0.15mm
Line Width/Spacing: 6/6mil
Surface Finish: ENIG
Features: 4350B Hybrid Laminate
Application: Medical Devices

Product Detail

Product Name: 2-Layer Rogers RO4350B High Frequency PCB for Medical Devices

Product Overview

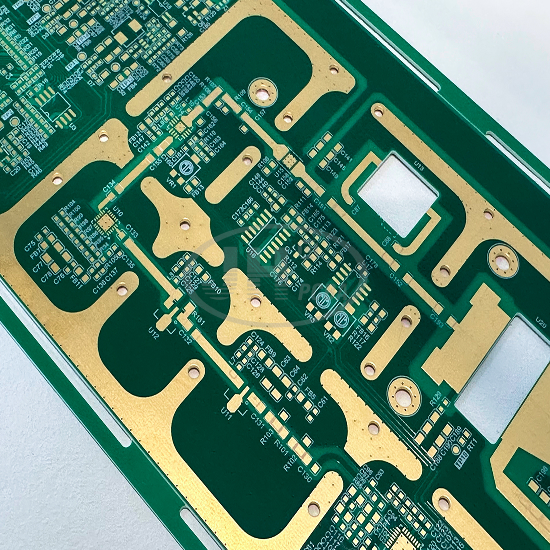

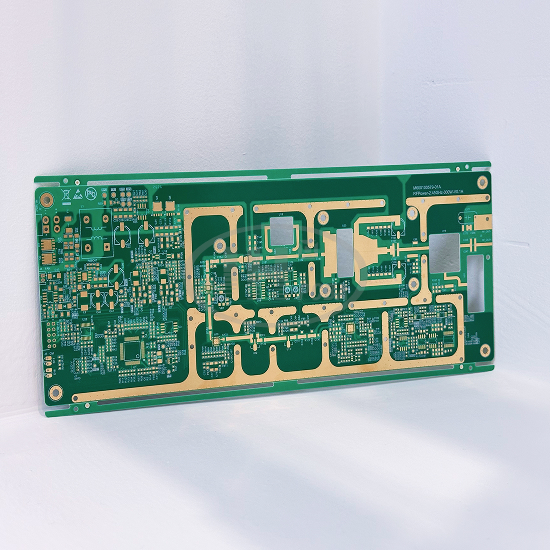

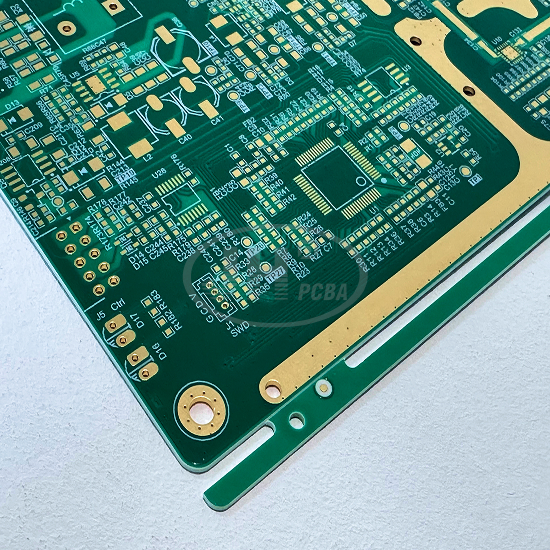

This is a 2-layer pure Rogers RO4350B high-frequency PCB, dimension 267.5*110mm, finished thickness 0.8mm, surface finish ENIG(Electroless Nickel Immersion Gold). Minimum hole size 0.2mm, minimum trace/space 6mil/6mil. Designed for medical RF equipment with low RF loss and excellent dimensional stability, widely used in Peninsula Medical RF aesthetic equipment, microwave therapeutic devices. Juehui Weiye Circuit owns mature manufacturing technology for Rogers high-frequency PCB, available for prototype and mass production, meeting high reliability requirements of medical devices.

Specifications

- Material: Rogers RO4350B (Hydrocarbon ceramic filled high-frequency laminate)

- Layers: 2 Layers

- Panel Size: 267.5×110mm

- Board Thickness: 0.8mm

- Min Hole Diameter: 0.2mm

- Min Trace / Space: 6mil / 6mil

- Surface Finish: ENIG (Electroless Nickel Immersion Gold)

- Flammability: UL94 V-0

- Dielectric Constant Dk:3.48 @10GHz

- Product Type: RF & Microwave PCB

Product Features

1. Rogers RO4350B substrate, low dielectric loss, stable high-frequency signal transmission, excellent phase consistency.

2. ENIG surface finish, flat and anti-oxidation pads, compatible with SMT assembly for medical components, outstanding long-term reliability.

3. 6mil fine line & 0.2mm microvia, high-density routing for precision RF circuit design.

4. Special process for 0.8mm thin board, strictly control board warpage and guarantee flatness for large-size panel.

5. UL94 V0 flame retardant, low water absorption, stable performance under temperature variation, suitable for harsh working environment of medical instruments.

6. Juehui proprietary high-frequency PCB process, plasma desmear & impedance control. We can supply full inspection reports including impedance test, cross-section and AOI for medical quality traceability.

Application

Medical industry: RF aesthetic equipment, microwave therapeutic instrument, plasma medical device, medical RF power board, RF transmit & receive board for medical machines.

Manufacturing Capability of Juehui Weiye Circuit

Juehui Weiye Circuit specializes in custom RF & microwave PCB, proficient in Rogers RO4350B, RO4003, RO5880 laminates. We solve typical processing challenges of Rogers material: drill bit wear, rough hole wall, thin board warpage and fine line etching. We provide stack-up suggestion & impedance simulation evaluation. We support fast prototype and mass delivery, one-stop PCB service for medical, telecom and radar customers.

Order Instruction

We accept Gerber files & PDF drawing for quotation. Available for low-volume prototype and mass production. Custom Rogers PCB with different layers, thickness and surface treatments is available on request.
