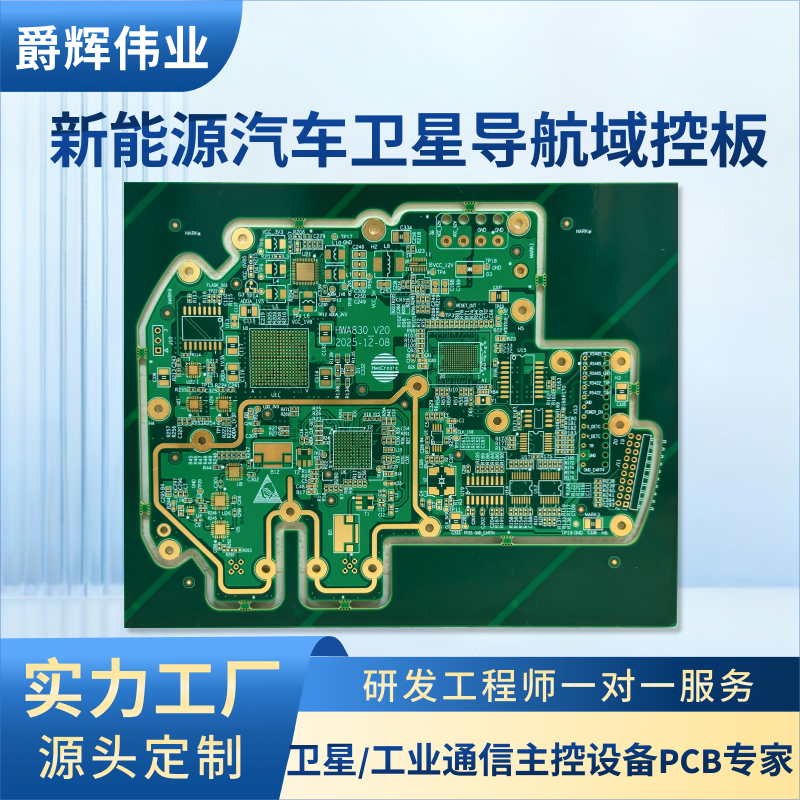

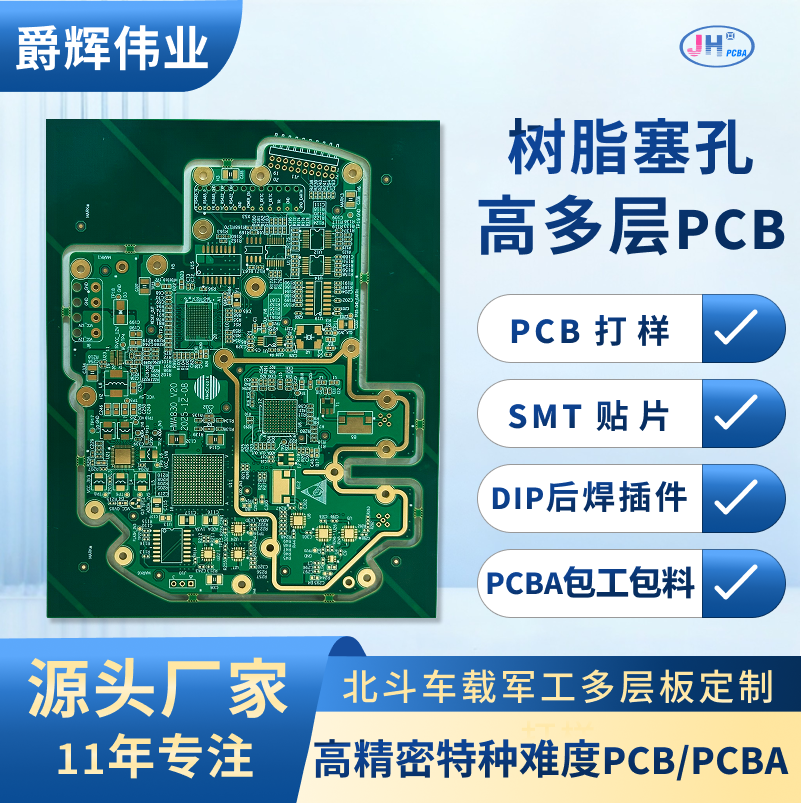

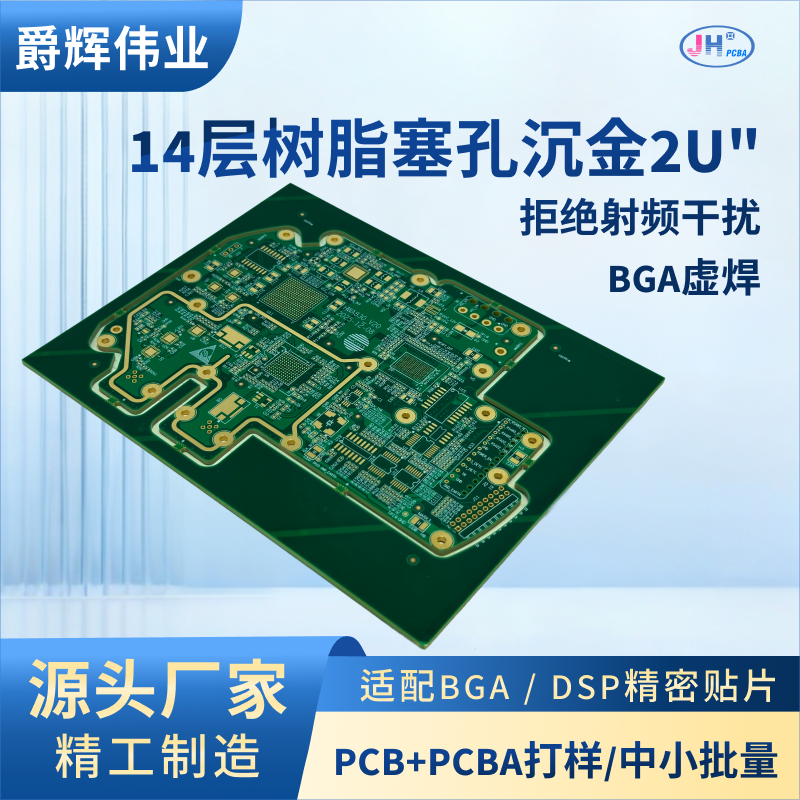

14-Layer High Frequency PCB with Taiyao Material
Custom Mass Production of 14-Layer TUC TU-872 High-Speed Multilayer PCB with Resin Plugged Holes & ENIG Surface Finish for Automotive Terminals
Material: TU872- Layers: 14-Layer
- Thickness: 2.0mm
- Min. Aperture: 0.2mm
- Min. Line Width: 0.11mm
- Min. Line Dia.: 0.06mm
- Line Width/Spacing: 4/2mil
- Surface Finish: ENIG,2U”
- Features: TU-872 + FR-4 Hybrid Stack-up
- Application: Automotive Electronics
