FPC Flexible Cable PCBA Turn‑key Service

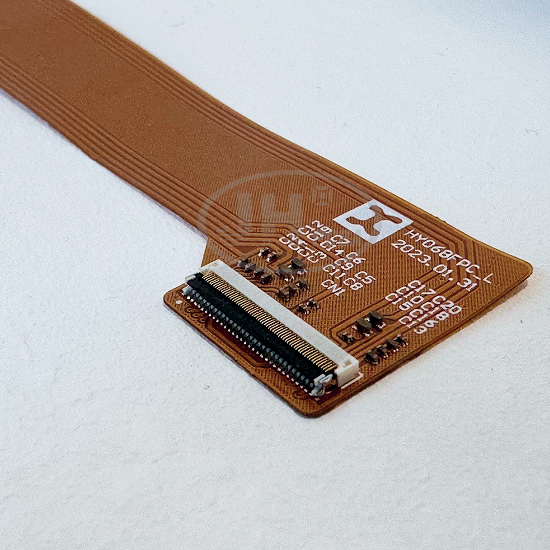

Model HY068FPC_L is a complete FPC flexible cable PCBA with finished dimensions of 199mm×20mm. It adopts PI (Polyimide) flexible base material. Centered on SMT assembly, local stiffener reinforcements are applied. Connectors and SMD components are mounted on the board, making it a display‑cable‑type flexible assembled PCBA.

JUEHUI Weiye handles challenging manufacturing pain‑points such as warpage and alignment offset during SMT for ultra‑thin flexible substrates. We support prototype development, small‑batch trial runs and mass‑volume production for customers across industrial control, medical devices, telecommunications, instruments & meters, robotics, consumer electronics, new energy, energy storage, security & surveillance, automotive electronics and other industries.

Specifications

- Product Name: FPC Flexible Cable PCBA

- PCB Dimension: 199mm×20mm

- Board Type: FPC Flexible Printed Circuit

- Base Material: PI (Polyimide)

- Core Process: SMT Assembly

- Surface Finish: Immersion Gold

- Minimum Trace Width / Spacing: 0.08mm / 0.08mm

- Minimum Hole Size: 0.1mm

- Component Packages: 0402 resistors & capacitors, FPC connectors

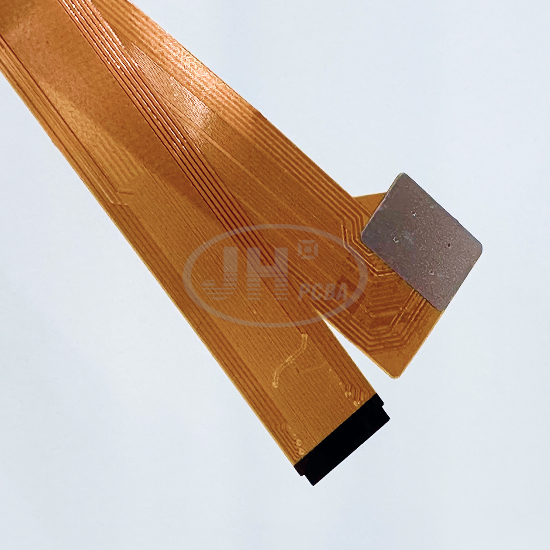

- Auxiliary Structure: Local steel stiffener reinforcement

- Inspection Items: AOI optical inspection, continuity & impedance test, bend‑reliability sampling test

Manufacturing Workflow

Process Sequence: FPC Material Cutting → Drilling → Circuit Patterning → Immersion Gold Surface Finish → Stiffener Lamination → Profile Routing → SMT Assembly → Reflow Soldering → AOI Optical Inspection → Electrical Continuity Test → Cleaning → 100% Visual Inspection → Final Packing

1. Stiffener Lamination: Steel stiffeners are bonded at connector zones to enhance local rigidity and prevent FPC tearing caused by repeated plug‑and‑unplug cycles.

2. SMT Assembly: Custom fixture positioning for flexible FPC substrates. SMT placement pressure is precisely controlled to mitigate thin‑board warpage and component offset.

3. Reflow Soldering: Low‑temperature constant‑profile reflow optimized for PI flexible material. It avoids thermal deformation of the substrate and ensures reliable solder joints for connectors, resistors and capacitors, minimizing cold‑solder defects.

4. AOI Inspection: Scans all SMD components to detect missing parts, component shift, tombstoning, cold joints and other assembly defects.

5. Electrical Performance Test: Full‑circuit continuity and impedance verification to guarantee stable signal transmission. Bend‑cycle reliability test is available upon request.

Application Fields

Light‑weight, flexible and capable of repeated bending, this FPC cable PCBA is designed for display‑signal interconnection. Typical applications include:

- Industrial Display: Signal cable assemblies for industrial touch screens and instrument displays

- Smart Terminals: Display interconnection modules for portable devices and tablets

- Security Equipment: Internal flexible cables for smart‑camera displays and touch panels

- Medical Electronics: Display modules for portable testing instruments

- Smart Home: Flexible interconnection assemblies for smart touch panels

JUEHUI Weiye PCBA Customization Advantages

✅ One‑stop FPC + PCBA Solution: FPC fabrication, SMT assembly and component procurement. Customers only need to supply drawings and BOM, eliminating multi‑vendor coordination overhead.

✅ Proven FPC SMT Capability: In‑house fixture design resolves flexible‑board warpage; stable high yield for FPC connector mounting.

✅ High‑flexibility Flexible‑board Customization: Support special‑shape FPC, local stiffeners and customized surface finishes.

✅ End‑to‑end Quality Control: AOI inspection, electrical testing and reliability sampling. Inspection reports provided with shipments.

✅ Flexible Production Capacity: Prototyping, small‑batch trial production and high‑volume manufacturing with controlled lead‑time.

✅ Authorized Certifications: ISO9001 and ISO13485 (medical‑grade) quality‑management‑system certifications.

✅ Additional Services: Rigid PCB and rigid‑flex PCBA manufacturing available for full‑spectrum circuit‑board support.

Cooperation Guide

If you require PCBA SMT services for FPC flexible circuits, rigid‑flex boards or rigid PCBs, please send us schematics, BOM lists and PCB design files. JUEHUI delivers complete PCBA solutions including DFM review, prototype sampling and mass‑volume manufacturing. B‑enterprise clients are welcome for custom inquiries.

Order Instructions

Please provide PCB Gerber files, BOM, component centroid coordinate files and functional‑test specifications. We will furnish one‑stop quotation and manufacturing evaluation covering PCB production, SMT assembly and through‑hole assembly. Adjustments to substrate material, layer count, surface finish and component‑sourcing schemes can be made on demand.
