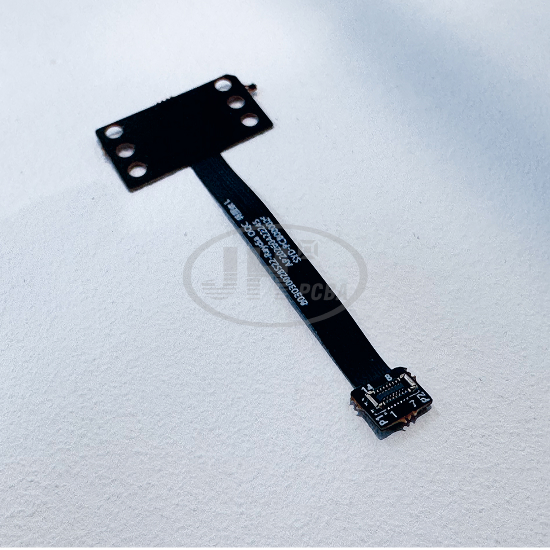

FPC Flexible Adapter Board PCBA

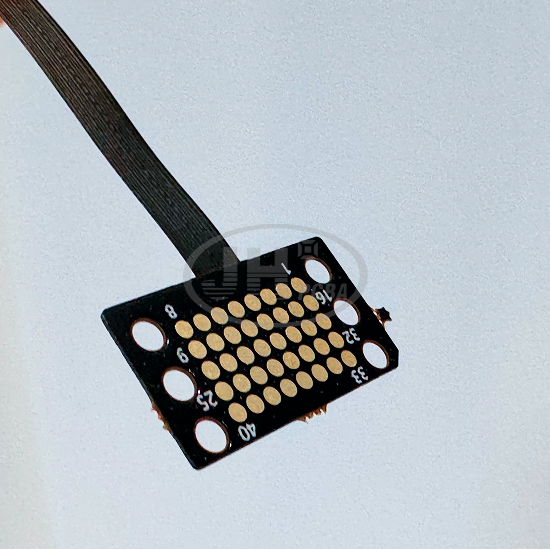

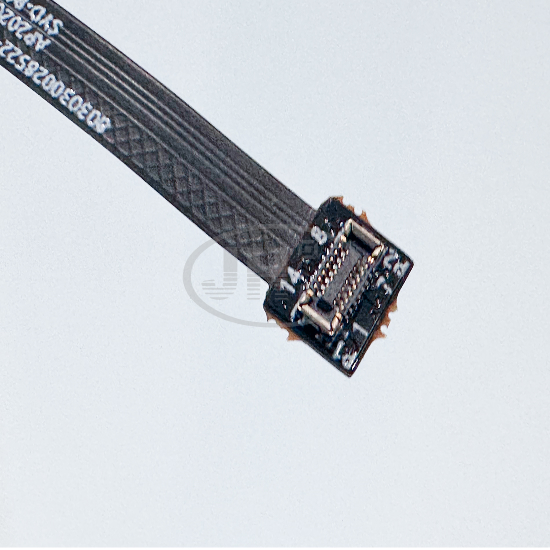

This is an FPC flexible adapter board PCBA with finished FPC dimension of 51mm×20mm. It adopts PI polyimide flexible substrate. The board is thin and bendable with immersion gold surface finish. One end features multi-contact pad area, and the other end is assembled with precision connector via SMT mounting.

This flexible adapter board serves for internal signal switching of equipment. Leveraging the bendable and foldable feature of FPC, it realizes signal transmission connection in compact space and ensures stable and reliable signal transmission. Juehui Weiye Circuit provides one-stop customized PCBA services including FPC fabrication and SMT assembly. We specialize in precision FPC mounting and micro connector soldering, supporting prototyping and mass production for consumer electronics and testing equipment.

Our factory is certified by ISO9001 and ISO13485 medical quality management system. All products comply with international environmental standards including REACH, RoHS and UL, meeting customized FPC assembly demands from enterprises in medical, industrial control, communication, robotics, consumer electronics, intelligent IoT, new energy and automotive electronics industries.

Basic Specifications

- Finished FPC Dimension: 51mm×20mm

- Substrate: PI Polyimide Flexible Material

- Board Thickness: 0.12mm (FPC core material)

- Surface Finish: Immersion Gold

- Min. Line Width / Line Spacing: 0.08mm/0.08mm

- Min. Aperture: 0.1mm

- Min. Component Package: 0402

- Component Type: Precision Board-to-Board Connector

Manufacturing Process

Process Flow: FPC flexible board fabrication + SMT Mounting & Reflow Soldering

1. FPC Fabrication: Circuit Etching, Opening, Immersion Gold, Stiffener Reinforcement, Profiling, AOI Inspection

2. SMT Assembly: Mounting of micro board-to-board connectors, 10-zone lead-free reflow soldering

3. Solder Joint Visual Inspection, Continuity Test, Bending Reliability Test, Final Product Inspection

Application Fields

Precision test fixture adapter, smart wearable devices, compact camera modules, medical testing equipment, internal signal adapter for consumer electronics, cable assemblies for portable instruments.

Service Advantages

Juehui Weiye Circuit owns mature capabilities for SMT assembly of FPC flexible circuits. We undertake customized PCBA orders for various flexible boards and rigid-flex boards. Full services available including Gerber review, component procurement, precision component mounting, continuity and reliability testing.

For FPC assembly projects requiring bending and limited installation space, we support rapid prototyping, small/medium batch and mass production.

Order Instructions

Please provide PCB Gerber files, BOM list, centroid file and test specification. We will deliver one-stop quotation and production evaluation covering PCB manufacturing, SMT mounting and connector assembly. Material, board thickness, surface finish and component sourcing scheme can be adjusted upon request.
