Multi-channel High-power Power Drive PCBA

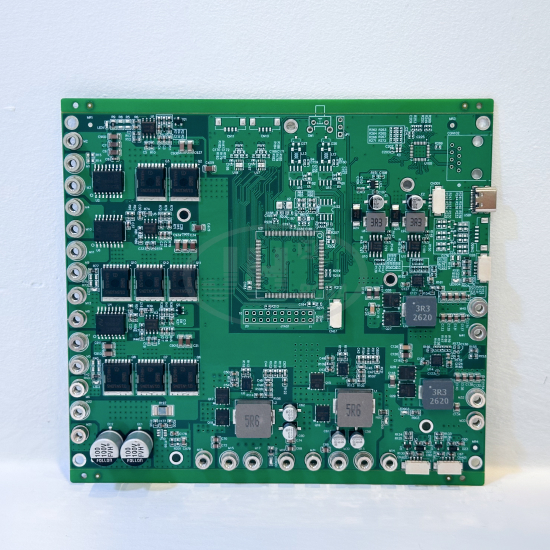

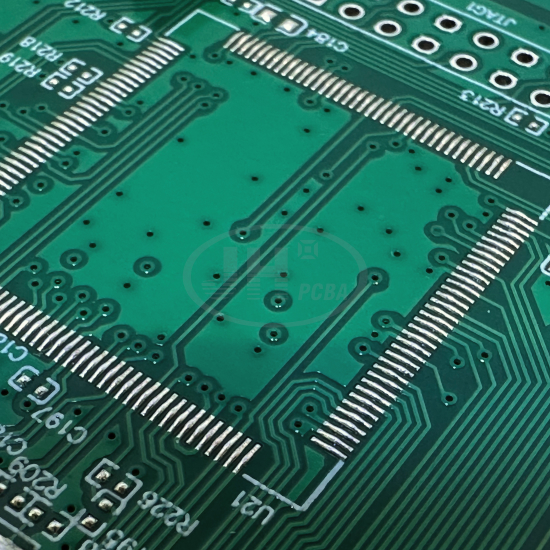

This multi-channel high-power power drive PCBA has finished dimensions of 150mm×139mm. It is an FR-4 multilayer PCB with green solder mask, manufactured with one-stop service of PCB fabrication and precision SMT assembly. A dedicated footprint area is reserved for the main control chip. The board is equipped with multi-channel power MOSFETs, high-power power inductors and high-voltage electrolytic capacitors. Multiple PEM self-clinching studs are arranged along the board edge for high-power multi-channel output control.

It integrates Type-C debug port and multiple signal connectors to support independent high-current output of multiple channels, with over-current, over-voltage and short-circuit protection. Widely used in industrial power modules, high-power load drivers and power supply control for industrial automation equipment.

Juehui Weiye Circuit undertakes custom PCBA for high-power power supplies. We support high-current PCB layout design and precision SMT assembly of high-power devices for prototype and mass production of PCBA used in industrial power and new energy equipment.

1. Basic Specifications

PCBA Finished Size: 150mm × 139mm

PCB Material: FR-4 multilayer board, high-TG material

Board Thickness: 1.6mm

PCB Surface Finish: HASL

Minimum Trace Width / Spacing: 0.1mm / 0.1mm

Minimum Hole Size: 0.2mm

Core Packages: 0402 / 0603 SMT resistors & capacitors, TO-252 power MOSFET, QFN IC, shielded power inductors, through-hole electrolytic capacitors

Minimum Pin Pitch: 0.5mm (QFN package)

Total Solder Joints: approx. 2160 joints (SMT solder joints included)

2. BOM & Component Function Description

1. SMT Capacitor (0402 / 0603)

Function: Power filtering and voltage stabilization, absorb voltage spikes, stabilize each power loop and reduce power ripple.

2. SMT Resistor (0402 / 0603)

Function: Voltage division, current limiting, pull-up / pull-down for signals, set circuit threshold and sample current & voltage signals.

3. Shielded Power Inductor (marked 3R3,5R6)

Function: Core component for DC-DC buck conversion, store and release energy to realize multi-channel voltage conversion.

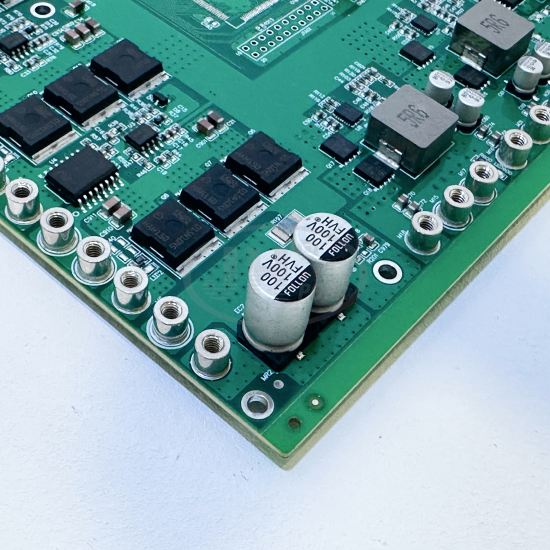

4. High Voltage Through-hole Aluminum Electrolytic Capacitor

Function: Large-capacity energy storage for main circuit, smooth output voltage and withstand instantaneous high current surge.

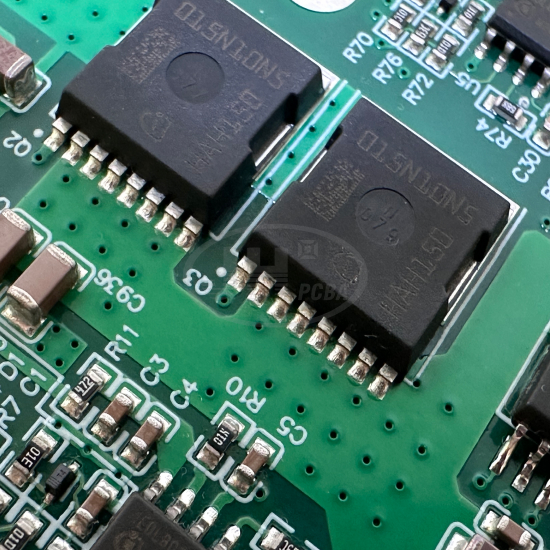

5. Power MOSFET (TO-252, marking 015N10NS)

Function: High-current switch control, turn on/off multi-channel power paths and drive high-power loads.

6. QFN Power Management IC

Function: PWM control and feedback loop, manage DC-DC conversion and realize overvoltage & overcurrent protection.

7. Type-C Connector

Function: Debug communication port for PC connection, parameter configuration and status reading.

8. White Wire-to-board Connector

Function: External interface for signal and auxiliary power, connecting external sensors and control signals.

9. PEM Self-clinching Stud

Function: Board mounting hardware, fasten PCBA to equipment chassis for grounding.

10. Diode & TVS Diode

Function: Reverse polarity protection, surge suppression, protect back-end circuit from ESD and voltage spikes.

> Total Component Categories: 10 types; Total Component Quantity: 126pcs

3. Manufacturing Process

Process Flow: PCB Fabrication + Precision SMT Mounting + DIP Through-hole Assembly + Manual Soldering + Inspection

1. PCB Fabrication: FR-4 multilayer PCB production with high current copper weight design, green solder mask and HASL surface finish to meet high current carrying requirements.

2. SMT Assembly: 10-zone lead-free reflow soldering for mounting 0402/0603 R/C, QFN, power MOSFET and power inductors.

3. DIP Insertion: Assembly of aluminum electrolytic capacitors.

4. Manual Post Soldering: Soldering and reinforcement for electrolytic capacitors.

5. Quality Inspection: AOI optical inspection + continuity & insulation test, special inspection for high-power circuits.

4. PCBA Application Fields

1. Industrial Automation: Multi-channel high-power load driver board, internal power module for industrial equipment.

2. New Energy Equipment: Small energy storage power supply, test power supply, high-power electronic load control board.

3. Industrial Control Devices: Multi-channel power supply board for industrial controllers and actuator driver boards.

4. Test & Measurement Instruments: Multi-channel power output fixture, ATE power supply board.

5. Service Advantages of Juehui Weiye Circuit

Juehui Weiye Circuit has 11 years of experience in one-stop custom high-complexity PCBA manufacturing, specializing in high-power power supply and industrial driver PCBA.

✅ Support high-current PCB design & fabrication, precision SMT assembly of high-power components.

✅ One-stop delivery including multilayer PCB fabrication, SMT, DIP, post soldering and testing.

✅ Support quick prototyping for small batches and medium-volume mass production.

✅ Custom B2B service for industrial control, new energy, semiconductor testing, medical, security and other industries.

The company has obtained ISO9001 quality management system certifications. All products comply with international environmental standards including REACH and RoHS.

We can meet your demands for rapid small-batch prototyping, medium-batch trial production and mass production. Customizable PCB layer count, board thickness, copper weight, surface finish, impedance design and full test solutions.

Equipment manufacturers and solution companies in industrial control, new energy, instrumentation, AI smart hardware, security, IoT and communication industries are welcome to send drawings, BOM and centroid files for sample consultation.

Order Instructions

Please provide PCB Gerber files, BOM list, centroid files and test specifications. We offer one-stop quotation and production evaluation covering PCB manufacturing, precision SMT, DIP assembly, post soldering and functional test.

Board material, thickness, PCB layers, copper weight, surface finish and component selection are all customizable.
