Long Multi-channel Signal Backplane PCBA

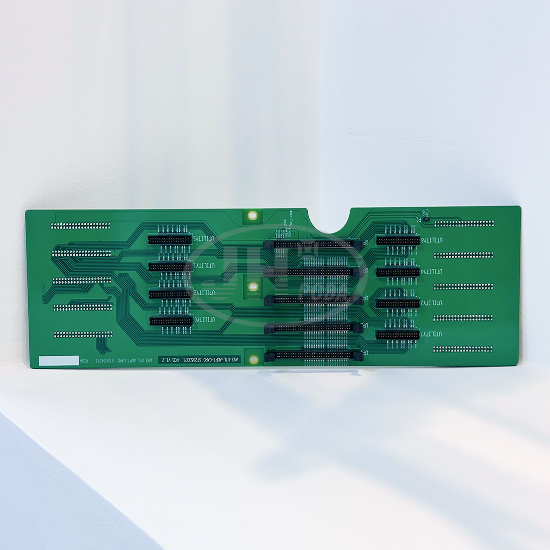

This A83-UTL-ADPT-CARD multi-channel signal backplane PCBA features finished dimensions of 420mm×115mm. It adopts FR-4 multilayer PCB material with a long strip-shaped irregular board structure. Equipped with multiple sets of high-current, high-density through-hole connectors, it functions as an internal signal distribution backplane for equipment.

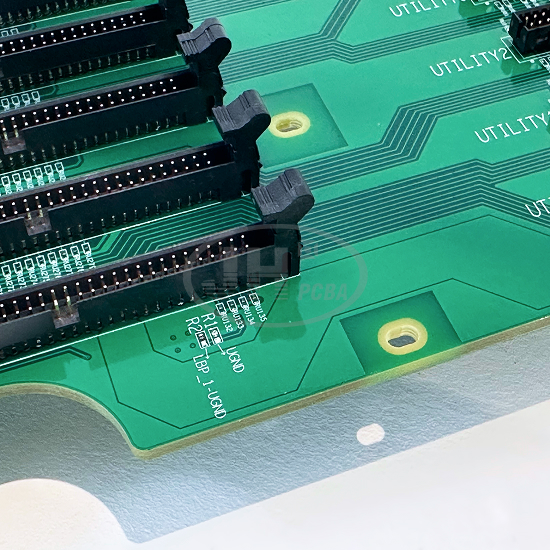

The board reserves multiple UTILITY signal channels and realizes parallel signal distribution via multiple interfaces to transmit signals and power between the main control board and multiple sub-boards. With long routing and numerous signal channels, it imposes strict requirements on impedance control, routing consistency and connector soldering reliability.

Juehui Weiye Circuit  specializes in manufacturing large-size backplanes, high-density connector boards and industrial equipment backplanes, supporting fast prototyping and mass production for B-end customers.

Basic Parameters

- Finished PCBA Dimension: 420mm×115mm

- PCB Material: FR-4 Glass Epoxy Laminate

- PCB Layers: 4 Layers

- Board Thickness: 2.0mm

- Surface Finish: HASL

- Minimum Trace Width / Space: 0.15mm/0.15mm

- Minimum Aperture: 0.3mm

- Minimum Component Package: 0402

- Component Type: High-density Straight Connectors with Large Pin Count

- Board No.: A83-UTL-ADPT-CARD PCB V1.2

- Features: Multi-channel Parallel Signal Distribution, Expansion Connection for Multiple Sub-boards, Synchronous Transmission of Multi-channel Power and Signals

Manufacturing Process

Process Flow: PCB Fabrication + DIP Insertion + Wave Soldering + Manual Soldering

1. PCB Fabrication: Circuit Etching, Impedance Control, Solder Mask, Silkscreen, Drilling, Routing, V-Cut, AOI Inspection

2. DIP Insertion: Assembly of multiple high-density connectors

3. Wave Soldering: Lead-free wave soldering for mass soldering

4. Post-soldering & Rework, Solder Joint Visual Inspection, Continuity Test, High Voltage Insulation Test, Full Signal Conduction Test, Final Product Inspection

Application Fields

Backplanes for industrial automation equipment, mainframe backplanes of test systems, daughter card expansion backplanes for communication equipment, signal distribution boards for industrial control chassis, multi-channel adapter backplanes for automatic test platforms.

Service Advantages

Juehui Weiye Circuit has mature processing capability for large-size long-board PCBA, undertaking customization of various industrial backplanes, high-density connector boards and system adapter boards. Our one-stop service includes Gerber evaluation, impedance calculation, PCB manufacturing, component sourcing, SMT assembly, DIP insertion, wave soldering, post-soldering assembly and electrical performance testing.

The company holds ISO9001 & ISO13485 medical quality management system certifications. Our products comply with international environmental standards including REACH, RoHS and UL. We support small-batch prototyping, medium-batch trial production and large-volume mass production. Customized adjustments on board thickness, layer count, surface finish, impedance schemes and test specifications are available. B-end enterprises are welcome to consult and submit samples with drawings, BOM and centroid files.

Order Instructions

Please provide PCB Gerber files, BOM list, centroid files and test specifications. We will offer one-stop quotation and production evaluation covering PCB fabrication, SMT assembly, insertion & wave soldering and post-soldering assembly. Board material, thickness, PCB layers, surface finish and component selection can be customized as required.
