ixture Test Adapter PCBA

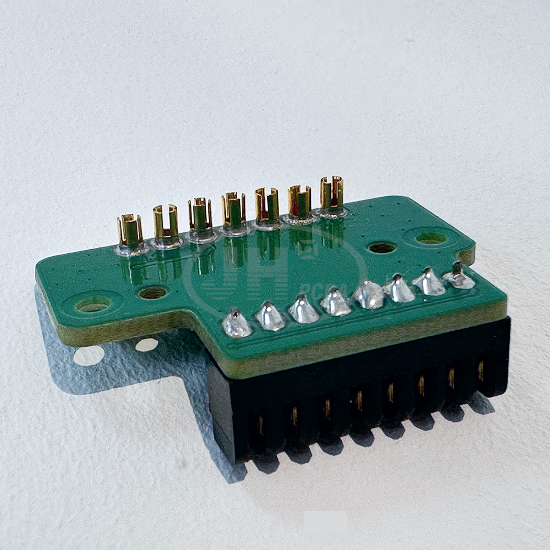

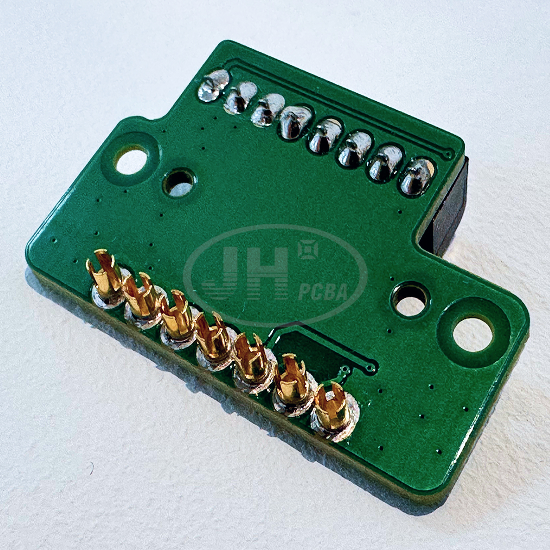

This is the 8B01-FIX_R Board V6.0 fixture test adapter PCBA with finished dimension of 34mm×22.5mm. It adopts FR-4 2-layer PCB substrate, equipped with spring pogo pins and black 8P socket connector, specially designed as adapter board for test fixtures.

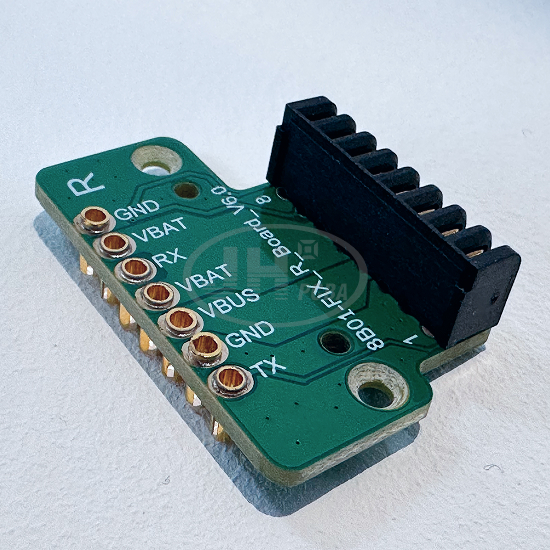

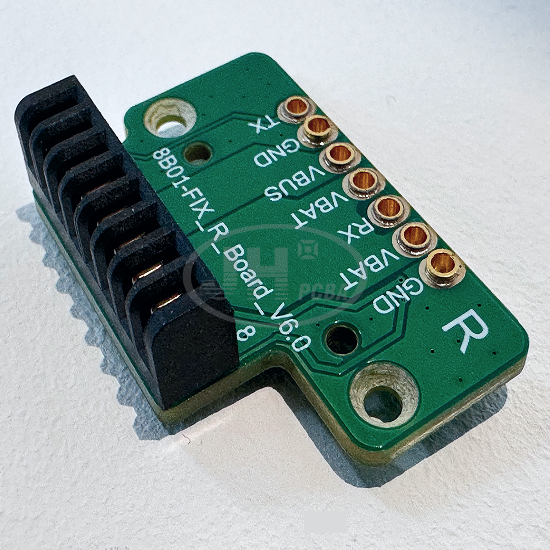

Signal pads including TX/RX, VBAT, VBUS and GND are reserved on the board. It contacts DUT (Device Under Test) via spring pogo pins to realize power supply and serial signal transmission. Widely used for automated production line testing, it ensures stable test signals and reliable contact, improving inspection efficiency for mass production. Juehui Weiye Circuit provides one-stop customized PCBA services including PCB fabrication, SMT mounting, DIP assembly and post-soldering. We specialize in manufacturing test fixture boards and precision adapter boards. Certified by ISO9001 and ISO13485 medical quality management system, our products comply with international environmental standards REACH, RoHS and UL. We support rapid prototyping and mass production for enterprises covering medical, industrial control, communication, robotics, consumer electronics, smart IoT, new energy and automotive electronics industries.

Basic Specifications

- Finished PCBA Dimension: 34mm×22.5mm

- PCB Substrate: FR-4 Glass Epoxy Board

- PCB Layers: 2 Layers

- Board Thickness: 1.6mm

- Surface Finish: HASL

- Min. Line Width / Line Spacing: 0.12mm/0.12mm

- Min. Aperture: 0.25mm

- Min. Component Package: 0402

- Component Types: Spring Pogo Pins, 8P Through-hole Connector

- Functional Pin Definition: TX, RX, VBAT, VBUS, GND

- Board Version: 8B01-FIX_R Board V6.0

Manufacturing Process

Process Flow: PCB Fabrication + SMT Mounting + DIP Through-hole Assembly + Manual Post Soldering

1. PCB Fabrication: Circuit Etching, Solder Mask Green Oil, Silkscreen Legend, Drilling, Routing, AOI Inspection

2. SMT Assembly: Mounting of spring pogo pins, 10-zone lead-free reflow soldering

3. DIP Assembly: Insertion of 8P socket connector

4. Post soldering, solder joint visual inspection, continuity test, fixture contact reliability test, final product inspection

Application Fields

Automated production line test fixtures, electronic product function test jigs, communication module test adapter boards, burn-in test boards for consumer electronics, signal adapters for small modules.

Service Advantages

Juehui Weiye Circuit has mature capabilities for fixture PCBA processing and accepts custom orders of various test adapter boards and jig boards. Our one-stop service includes Gerber review, PCB manufacturing, component sourcing, SMT mounting, DIP assembly, post-soldering and electrical testing.

We support small-batch prototyping, medium-batch trial production and mass production. All products meet RoHS and REACH standards. Custom adjustments on board thickness, surface finish, connector solutions and test specifications are available.

Order Instructions

Please provide PCB Gerber files, BOM list, centroid file and test specification. We deliver one-stop quotation and production evaluation covering PCB manufacturing, SMT mounting, DIP and post soldering. Substrate material, board thickness, surface finish and component selection can be customized as requested.
