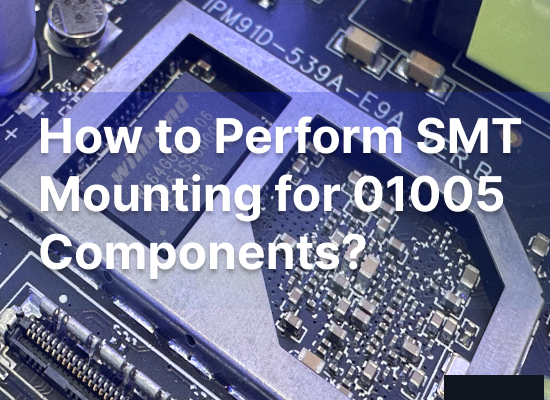

Q: How to mount 01005 micro-components with SMT? Why are regular SMT factories unable to mass-produce assemblies with 01005 components? What is Juehui Industry’s capability in high-precision component placement?

A: The 01005 is the smallest mass-producible SMT chip component in the industry. It measures merely 0.4mm × 0.2mm, smaller than a grain of fine sand. Its placement tolerance must be strictly controlled within ±25μm. Conventional SMT lines only reach ±0.05mm accuracy. When assembling 01005 components, defects such as tombstoning, misalignment, cold joints and solder bridges frequently occur, resulting in mass yields of only 60%–70% which fail the quality requirements of high-end products. High-precision 01005 SMT mounting serves as a core technical threshold for high-end PCBA fabrication for medical electronics, AI smart hardware, micro sensors and robot control boards.

1. Core Technical Challenges of 01005 SMT Mounting

01005 components have extremely tiny pads, imposing stringent requirements across the entire workflow: stencil printing, component placement and reflow soldering.

Standard equipment, regular solder paste and conventional stencils cannot satisfy micro-scale placement requirements. The process calls for high-resolution vision alignment systems, dedicated micro nozzles and closed-loop servo precision mounters. Supporting materials including ultra-thin nano-coated stencils and fine-particle solder paste are mandatory. Meanwhile, reflow ramp rate, constant temperature & humidity and ESD-controlled workshop environment must be strictly managed. Negligence in any process step will trigger batch defects.

2. Juehui Industry’s Core Strengths in 01005 High-Precision Placement

As a professional precision SMT assembly manufacturer, Juehui Industry specializes in high-end precision PCBA manufacturing and has overcome the technical hurdles of 01005 micro-component mounting.

Our placement equipment achieves an accuracy of ±0.025mm. Fitted with exclusive micro nozzles for 01005 and adopting lightweight precision placement technology, we effectively prevent component cracking, part dropping and positional deviation. The CPK value of production processes remains stably ≥1.67, delivering process consistency superior to industry benchmarks. We reliably support prototype validation and small-to-medium batch production for 01005 assemblies.

3. Full-Process Inspection to Guarantee Precision Mounting Quality

Juehui Industry implements a comprehensive inspection system combining 3D SPI, inline AOI and X-Ray to control 01005 assembly quality from the source. The 3D SPI accurately measures solder paste volume, thickness and flatness to avoid insufficient solder, bridging and paste slumping. Inline AOI identifies component mounting posture at micron resolution, capturing subtle defects such as tombstoning, lifting and offset. The assembly yield for micro components including 01005 and 0201 remains stable above 99.9%.

4. Main Application Scenarios of 01005 Precision SMT Assembly

Electronic products keep trending toward miniaturization and higher integration. 01005 micro-components are widely adopted in high-end fields such as robot control boards, medical inspection devices, micro sensors, AI modules and smart wearables. Juehui Industry has accumulated abundant cases of high-precision board fabrication. We provide one-stop custom services covering 01005 precision mounting, fine-line circuit fabrication and ultra-thin PCB assembly.

5. Key Criteria for Selecting a 01005 SMT Assembly Supplier

When choosing a manufacturer for 01005 SMT work, verify these key indicators: placement accuracy, availability of dedicated micro nozzles, process CPK performance and track record of high-precision product projects. Juehui Industry fully meets high-end production requirements with mature custom 01005 process solutions.

If you have precision PCBA projects involving 01005 components, please note the special 01005 process requirement when submitting your design files. Our dedicated engineers will provide one-on-one process evaluation and customized production solutions.
